How to Change Battery in Mazda CX-5 Key Fob: Simple Guide

You can replace the power cell in your remote by sliding the release tab to pull out the metal key, then prying the casing open to swap the CR2032 lithium battery. Changing the battery in a Mazda CX-5 key fob takes about five minutes and requires only a small flat-head screwdriver. This method works for most Mazda smart keys produced after 2014. If you’re unsure of your specific remote model, check your owner’s manual for the exact battery type required for your year.

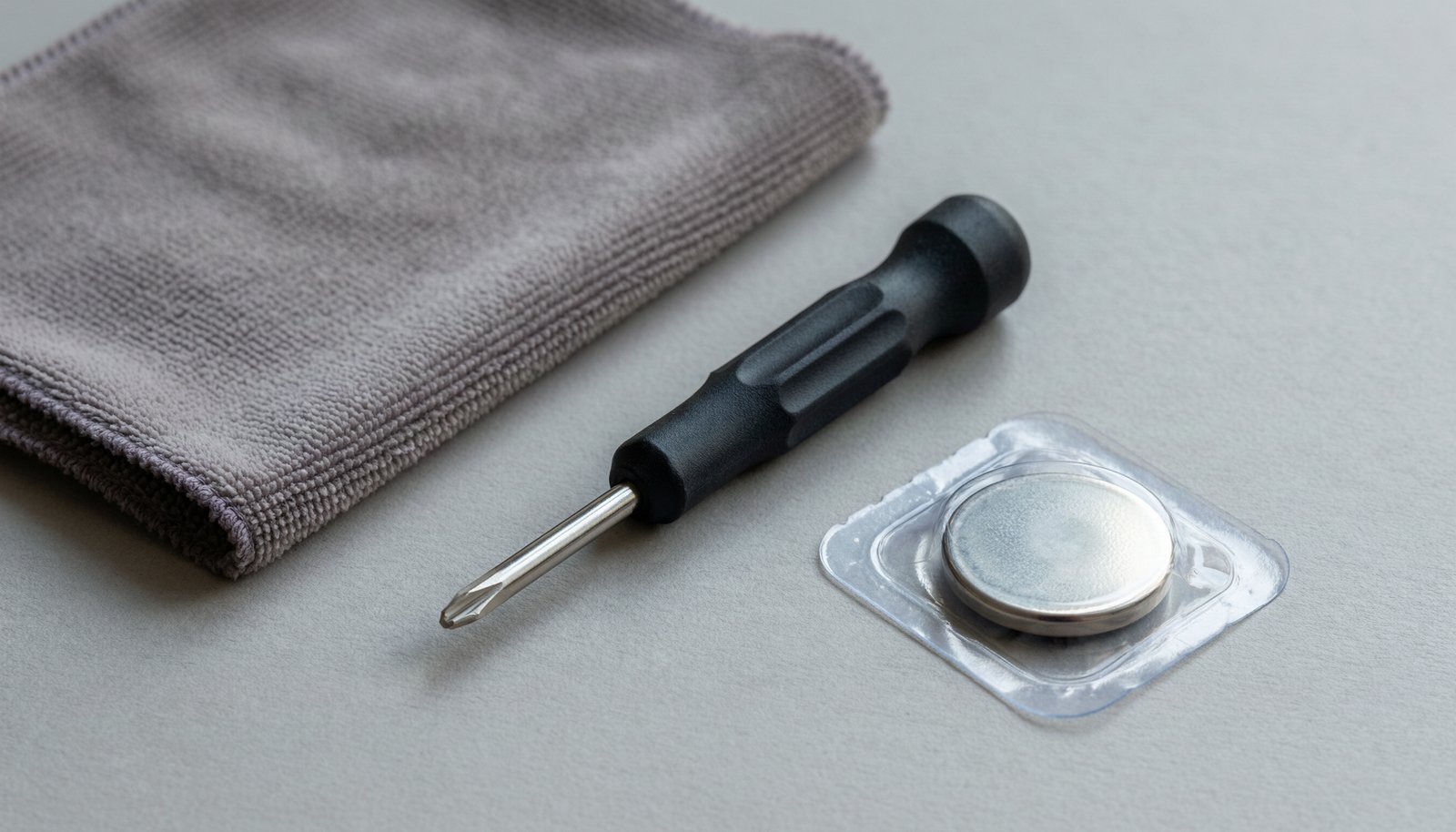

Tools needed to change your Mazda battery

To perform this task successfully, you need to have a few specific items ready on your workspace. Don’t attempt to use kitchen knives or bulky household tools, as these can easily damage the plastic housing or scratch the remote’s finish.

• CR2032 3V Lithium Battery: This is the universal standard for Mazda smart keys. Confirm your specific remote uses this size by checking the markings on your old battery before purchasing a replacement.
• Small flat-head screwdriver: A precision tool (1/8-inch or 3mm wide) is ideal for gently popping the plastic tabs without snapping them.
• Soft microfiber cloth: Lay this under your work area to keep the remote from sliding and to prevent surface scratches.
• Clean workspace: A well-lit table ensures you don’t lose the tiny internal components once the casing is removed.
• Owner’s manual: Keep this nearby if you have concerns about the immobilizer system or specific pairing requirements for your model year.

If you don’t have a precision screwdriver, a thin plastic prying tool or a stiff guitar pick serves as a safe alternative. Avoid using metal screwdrivers that are too thick, as they often crack the delicate plastic clips during the prying process.

A common mistake is forcing the casing open when it resists. If the remote doesn’t split with light pressure, stop immediately. Check for a hidden screw under the battery cover or a secondary release button. Forcing the seam usually results in a broken housing that will no longer snap shut, which is much more expensive than simply replacing the shell. If the alarm triggers during the battery swap, simply insert the key into the ignition or hold the fob against the start button to silence it.

How to Change Your Mazda CX-5 Key Fob Battery

1. Remove the auxiliary key: Locate the small release tab on the back of the fob, slide it to the side, and pull the metal emergency key out.
2. Open the outer shell: Insert your flat-head screwdriver into the slot where the metal key was located.
3. Twist the tool gently: Rotate the screwdriver slightly to pop the two halves of the key fob apart; work slowly to ensure you don’t break the plastic edges.
4. Remove the inner cover: Use the screwdriver to lift the small rubber or plastic cover protecting the circuit board and the battery.
5. Extract the old battery: Carefully push the old CR2032 battery out of its housing, noting which side faces up—usually the positive (+) side.
6. Insert the new battery: Slide the fresh battery into the holder, ensuring it’s seated flat and the positive side matches the original orientation.
7. Reassemble the unit: Align the two plastic halves of the casing and press them together firmly until you hear them click into place.
8. Replace the metal key: Slide the emergency key back into its slot until the release tab clicks shut.

Tip: If the remote doesn’t work immediately, verify the battery isn’t upside down. Careful: Avoid touching the circuit board with your fingers, as oil from your skin can cause corrosion over time.

Battery replacement time and cost variations

The time and cost to maintain your remote vary depending on whether you perform the task yourself or visit a dealership service center. Starting with a basic DIY approach is almost always the most efficient route for a simple power cell swap.

Situation	Estimated Time	Typical Cost	What to Watch For
DIY at home	5 minutes	$3–$6	Plastic tab health
Auto parts store	10 minutes	$5–$10	Proper battery size
Dealership service	30–60 minutes	$20–$50	Service wait times

If you feel resistance, stop immediately. A stripped screw often forces a full remote shell replacement, which is far more costly than using the correct tool.

If the remote casing lacks screws, it likely uses a snap-fit design. In this case, use a plastic pry tool rather than a metal blade to prevent marring the edges.

If your remote features a proximity key with a physical emergency blade, remove that key first. Many owners overlook this step, which keeps the internal housing locked tight. If the battery is held in place by a metal clip, use a non-conductive toothpick to nudge it free to avoid a short circuit.

Judging the quality of your work

A successful battery change results in a fob that locks and unlocks the doors from the same distance as when the car was new. If the remote feels loose or the buttons are unresponsive, the casing may not be fully snapped together or the battery might not be making proper contact with the internal pins.

A common mistake is using a battery that’s slightly too thin or an off-brand cell that lacks the correct electrical output. These cheap cells often fail to provide the necessary power under load, causing the signal to cut out even if the fob lights up. If your remote works while standing next to the door but fails from ten feet away, have a technician inspect the battery connection.

Always ensure the battery is held firmly by the metal clips. If it’s loose, the remote will function intermittently. If you hear a rattle when shaking the fob, the battery isn’t seated correctly.

Preventing these issues is simple. Verify the battery is fully seated before closing the shell and ensure no debris is trapped inside the housing. If the buttons still stick after cleaning, check for a misaligned rubber membrane; it must sit perfectly flat against the circuit board.

Rules and maintenance standards

The CR2032 battery is the standard industry size for most modern vehicle key fobs, as specified by the battery manufacturers and automotive security guidelines.

Once finished, you should test the remote from at least 20 feet away to ensure the signal strength is restored. If the fob still fails to communicate with the car, you may need to perform a synchronization procedure as outlined in your vehicle’s service manual.

Always use a pair of plastic tweezers or a clean microfiber cloth to handle the cell.

If you’re uncomfortable handling the internal electronics, contact your local Mazda dealer’s service department to have a technician perform the swap.

Lithium batteries should be disposed of properly at a local recycling center. Never toss them into household trash, as the residual charge can spark a fire when crushed in a collection truck. If the battery casing appears swollen or punctured, tape over both terminals immediately to prevent a short circuit.

Alternative ways to manage your remote

Professional locksmith service

A locksmith can replace the battery and check for internal damage to the circuit board. This is a better option if your buttons are physically broken or the casing is cracked beyond repair, though it costs significantly more than a DIY swap.

Dealership programming

If the remote loses its connection to the vehicle, a dealership can perform a full reset. This is rarely needed for a simple battery change, but it’s necessary if the key fob was replaced entirely or the car’s security module was updated.

Spare key usage

If you have a second key fob, test it to see if the issue lies with the remote or the vehicle’s receiver. If both remotes fail to work, the problem is likely with the car’s internal antenna rather than the battery in your fob.

Frequently asked questions

Can I change the battery myself?

Yes, you can easily change the battery yourself using only a small flat-head screwdriver. The process involves removing the emergency key, prying the housing apart, and swapping the old cell for a new CR2032 battery. Most people complete this in under five minutes.

How long does a key fob battery last?

The battery typically lasts between 24 and 36 months under normal daily usage. Factors like extreme cold or frequently pressing buttons while out of range can drain the power cell faster.

Is it safe to open the key fob?

Yes, it’s safe to open the fob as long as you use a gentle prying motion. You should avoid forcing the plastic casing, as the internal clips are delicate and can snap if too much pressure is applied.

What happens if I put the battery in backward?

The remote won’t function, and the car will fail to detect the key fob. If this happens, simply reopen the casing, flip the battery to the correct orientation, and verify that the positive side faces the designated mark.

How much does a replacement battery cost?

High-quality CR2032 lithium batteries are inexpensive compared to the cost of a new remote. You can find these at most grocery stores, hardware stores, or electronics retailers.

Why is my key fob still not working?

If the battery is new and the remote still fails, the internal circuit board may be damaged or the fob may need to be re-synchronized with the vehicle. Consult your owner’s manual for specific pairing steps or visit a service center.

Regular maintenance of your key fob ensures you’re never stranded when the power cell eventually fails.

Conclusion

Once you have snapped the cover back together, test the buttons near your vehicle to ensure everything works perfectly. If the light doesn’t blink or the doors won’t unlock, double-check that the battery is seated correctly. You’ll be back on the road in no time with a reliable remote again.
